Description

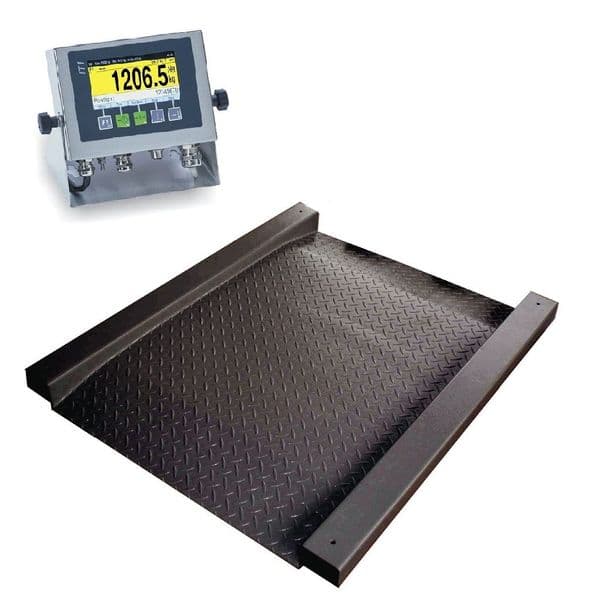

The DT / IT1 ATEX Zone 2/22 is a heavy duty, mild steel drive through platform scale for use in all warehouse and factory areas. The ultra low profile is ideal for easy loading and unloading of the scale via trolleys, pallet trucks, cages, tote bins etc.
The DT is connected to the versatile IT1 indicator, which is 230V - AC powered. This indicator, with high-definition backlit LCD display, can be read from a distance and at all angles and also features zero, tare and pre-set tare functions.
The DT / IT1 can be configured to different capacity and resolutions, which are selectable at point of order.
- Heavy duty drive through scale with a choice of sizes, capacities and graduations
- Solid, hard-wearing 5mm durbar top plate
- Large clear 25mm backlit LCD display
- Ultra low profile with integral ramps.
- IP67 R60 approved mild steel load cells.
- DT-5050 complete with rollers and grab handles on opposite sides
Platform Dimensions
| Model | Working Area (mm) | Footprint (mm) | Max Capacity (kg) | Total Load Cell Capacity (kg) |
| DT-5050 | 500 x 500 | 800 x 700 x 80 | 500 | 2000 |
| DT-7575 | 750 x 750 | 1150 x 990 x 110 | 1000 | 2000 |
| DT-1010 | 1000 x 1000 | 1400 x 1240 x 110 | 1000 | 2000 |
| DT-1212 | 1200 x 1200 | 1600 x 1400 x 110 | 1000 | 2000 |
Specifications
CAPACITIES:
500kg - 1000kg
RESOLUTION:
0.1kg - 0.2kg
Price:
£1841 - £1980
Datasheet:
Datasheet (Platform):
Brand:
Oneweigh
Product Code:
DT-5050/IT1-500
Frequently Asked Questions
Do I need Trade Approved Scales?
If a financial transaction is taking place based on the weight on the scale, then yes, you will need Trade Approved scales.
