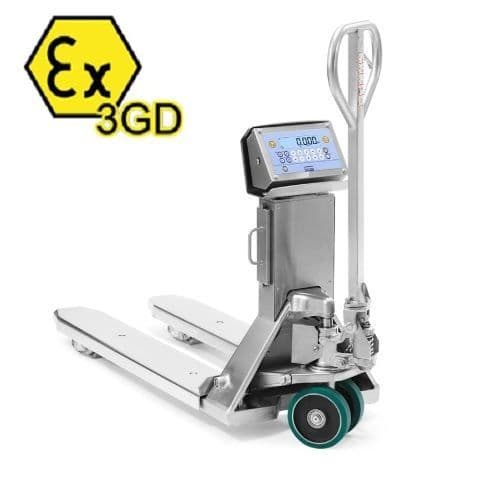

Dini Argeo TPWIEX3GD Stainless Steel Pallet Truck Scale

Pallet truck scales, with built-in electronic weighing, suitable for harsh working conditions and dangerous areas classified as hazardous (ZONE 2, 22) in accordance with Ex II 3G IIC T6 Gc X and Ex II 3D IIIC T115C° Dc X protection. The weight detection made with four Atex certified IP68 stainless steel load cells guarantees the precision in all work conditions. Structure entirely in stainless steel. Manufactured, calibrated and adjusted in Italy by Dini Argeo, using certified sample masses.

A TRADE APPROVED MODEL OF THIS PALLET TRUCK SCALE IS AVAILABLE HERE

MAIN FEATURES

• Maximum lifting capacity: 2000kg.
• Accuracy: +/- 0.1% of the maximum capacity in the versions for internal use.
• Accuracy: +/- 0.05% of the maximum capacity in the "M" approved versions.
• Fork dimensions 1182 x 550 x 80 mm.
• Weighs about 135 kg.
• Bearing structure entirely in extra thick STAINLESS steel.
• Lifting pump in STAINLESS steel.
• Antistatic driving wheels.
• Double loading rollers with a poliurethane coating.
• Four IP68 STAINLESS steel, Atex certified, shear-beam load cells.
• Weight indicator with waterproof IP68 STAINLESS STEEL case, easy to clean and resistant to harsh and corrosive environments; large high contrast 25mm backlit LCD display, easily visible also in poor lighting conditions and waterproof membrane keypad, with 17 numerical/functional keys.
• Calibration and Set-Up parameters configurable from keyboard or from PC.
• Power supply through extractable rechargeable battery, over 100-hour operating time. Battery rechargeable in safe zone only, connectable and disconnectable from the weighing system also in hazardous area.
• Programmable auto switch-off.
• Equipped with 110/230Vac 50 Hz battery charger.

MAIN FUNCTIONS

• Zeroing, Tare, Printing (in a safe area only), numeric IDs
• High Resolution Weighing x 10
• Net/Gross or lb/kg conversion
• Accumulation
• Formula weighing
• +/- Checkweighing
• Percentage weighing
• Counting (Max. resolution of 1.500.000 divisions)
• Set Point Control (with optional interface)

Delivery on these trucks is usually 2 weeks from receipt of order.
