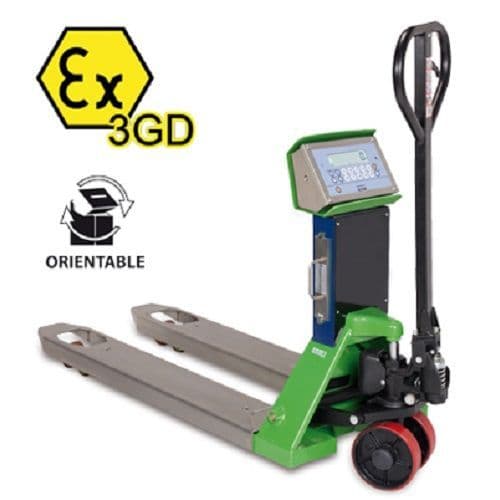

Dini Argeo TPWEX3GD Trade Approved Pallet Truck Scale

ATEX pallet truck scale for use in areas classified as hazardous (ZONE 2 and 22) with type of protection in accordance with Ex II 3G IIC T6 Gc X and Ex II 3D IIIC T115C° Dc X. Available in approved version for legal-for-trade use. Manufactured, calibrated and adjusted in Italy by Dini Argeo, using certified sample masses.

• Maximum lifting capacity: 2,000 kg.
• Resolution:
  > internal use: 0,2 kg
  > approved: 0,5 / 1 kg
• Accuracy (weighing of goods on Europallet with distributed load):
  > internal use: +/- 0,5 kg
  > approved: according to CE certification (Directive 2014/31/EU)
• Calibration and Set-Up parameters configurable from keyboard or PC.
• Forks with low profile, only 85 mm.
• Forks dimensions 1150 x 550 x 85 mm.
• Lifting height 200 mm.
• Weight approx. 125 kg.
• Bearing structure in extra-thick steel, oven-fire painted.
• Optional stainless steel forks.
• Standard swivelling head +/-160°.
• Steering wheels and loading rollers with polyurethane coating.
• Membrane waterproof keyboard with 17 numeric/functional keys.
• Battery charger 230Vac 50Hz with EU, US and UK plug as standard (charging time 8 hours) for charging in safe area. Optional AU plug.
• Serial port for radio communication (option OBRF3GD-x), Wi-Fi (option OBWIFI3GD-x) or downloading of weighs (option TPWMEM3GD-x).
• Operating temperature: -10° / +40° C

MAIN FUNCTIONS

• High resolution display x 10
• Net/Gross
• lb/kg conversion
• Free conversion factor (for meter-counting, litre-counting systems etc)
• Weight totalisation
• Formulation
• +/- control, with quick insertion of targets and thresholds
• Percentage weighing
• Piece counter
• Set Point Control (with optional interface)

Delivery on these trucks is usually 2-3 weeks from receipt of order.
