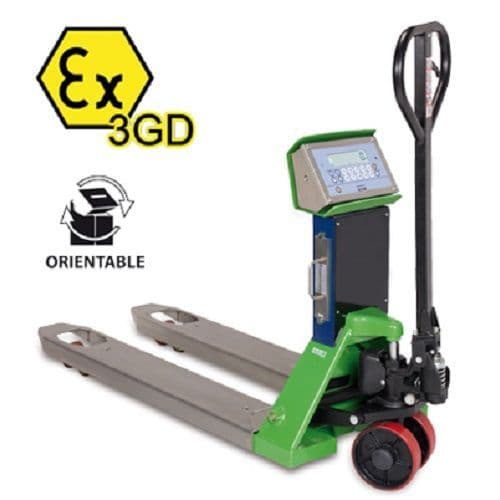

Dini Argeo TPWEX3GD Pallet Truck Scale

Brand: Dini Argeo  |  Product Code: TPWX3GD-1  |  Weight: 125kg   |

In stock
£2,382.00
£2,858.40 (inc. VAT)
£2,644.00
You save £262.00
Order by 3pm, get it tomorrow!
Favourite This
PayPal Checkout

Description

ATEX pallet truck scale for use in areas classified as hazardous (ZONE 2 and 22) with type of protection in accordance with Ex II 3G IIC T6 Gc X and Ex II 3D IIIC T115C° Dc X. Available in approved version for legal-for-trade use. Manufactured, calibrated and adjusted in Italy by Dini Argeo, using certified sample masses.

A TRADE APPROVED MODEL OF THIS PALLET TRUCK SCALE IS AVAILABLE HERE

  • Maximum lifting capacity: 2,000 kg.
  • Resolution:
    > internal use: 0,2 kg
    > approved: 0,5 / 1 kg
  • Accuracy (weighing of goods on Europallet with distributed load):
    > internal use: +/- 0,5 kg
    > approved: according to CE certification (Directive 2014/31/EU)
  • Calibration and Set-Up parameters configurable from keyboard or PC.
  • Forks with low profile, only 85 mm.
  • Forks dimensions 1150 x 550 x 85 mm.
  • Lifting height 200 mm.
  • Weight approx. 125 kg.
  • Bearing structure in extra-thick steel, oven-fire painted.
  • Optional stainless steel forks.
  • Standard swivelling head +/-160°.
  • Steering wheels and loading rollers with polyurethane coating.
  • Membrane waterproof keyboard with 17 numeric/functional keys.
  • Battery charger 230Vac 50Hz with EU, US and UK plug as standard (charging time 8 hours) for charging in safe area. Optional AU plug.
  • Serial port for radio communication (option OBRF3GD-x), Wi-Fi (option OBWIFI3GD-x) or downloading of weighs (option TPWMEM3GD-x).
  • Operating temperature: -10° / +40° C

MAIN FUNCTIONS

  • High resolution display x 10
  • Net/Gross
  • lb/kg conversion
  • Free conversion factor (for meter-counting, litre-counting systems etc)
  • Weight totalisation
  • Formulation
  • +/- control, with quick insertion of targets and thresholds
  • Percentage weighing
  • Piece counter
  • Set Point Control (with optional interface)

Delivery on these trucks is usually 2-3 weeks from receipt of order.

Specifications

  • CAPACITIES:
    2000/2500kg
  • RESOLUTION:
    0.2/2kg
  • Price:
    £2382 - £2437
  • Datasheet:
  • Manual:
  • Brand:
    Dini Argeo
  • Product Code:
    TPWX3GD-1
  • Weight:
    125kg
