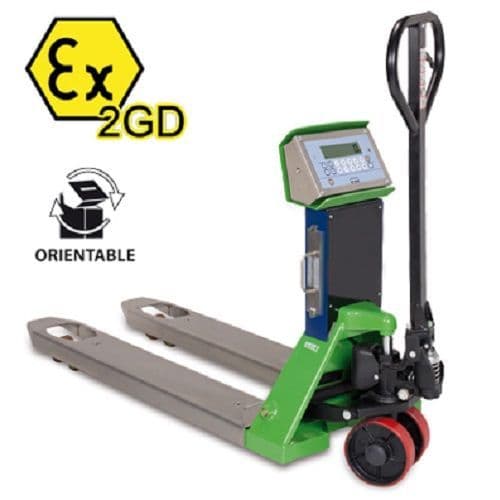

Dini Argeo TPWEX2GD Trade Approved Pallet Truck Scale

ATEX pallet truck scale for use in hazardous areas (ZONES 1 & 21 & 2 & 22) with Ex II 2G IIB T4 Gb X and Ex II 2D IIIC T197°C Db X protection.  Also available in a version approved for legal-for-trade use. Manufactured, calibrated and adjusted in Italy by Dini Argeo, using certified sample weights.

• Maximum lifting capacity: 2,000 kg.
• Resolution:
  > internal use: 0,2 kg
  > approved: 0,5 / 1 kg
• Accuracy (weighing of goods on Europallet with distributed load):
  > internal use: +/- 0,5 kg
  > approved: according to CE certification (Directive 2014/31/EU)
• Calibration and Set-Up parameters configurable from keyboard.
• Forks with low profile, only 85 mm.
• Forks dimensions 1150 x 550 x 85 mm.
• Lifting height: 200 mm.
• Weight approx. 125 kg.
• Bearing structure in extra-thick steel, oven-fire painted.
• Optional stainless steel forks.
• Standard swivelling head +/-160°.
• Steering wheels and double loading wheels with polyurethane coating.
• Membrane waterproof keyboard, with 17 numeric/functional keys.
• Dini Argeo electronics, ATEX certified, intrinsically safe.
• 230Vac 50Hz battery charger with EU, US and UK plugs as standard (charging time 8 hours) for charging in a safe area. Optional AU plug.
• Temperature range: -10° / +40° C

Functions

• Zeroing, Tare
• High Resolution Weighing x 10
• Net/Gross or lb/kg conversion
• Weighs accumulation
• Formulation
  Discover the other functions, download the manual.

Delivery on these trucks is usually 2-3 weeks from receipt of order.
