Description

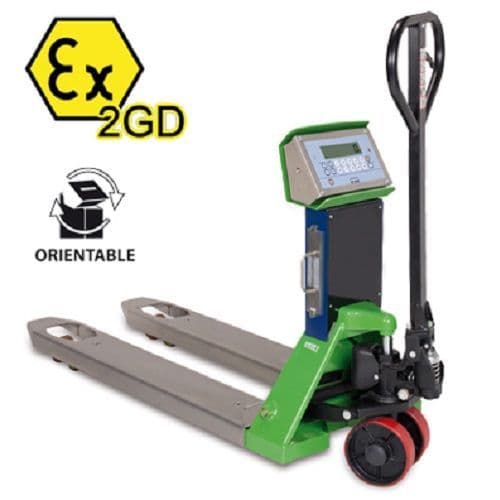

ATEX pallet truck scale for use in hazardous areas (ZONES 1 & 21 & 2 & 22) with Ex II 2G IIB T4 Gb X and Ex II 2D IIIC T197°C Db X protection. Also available in a version approved for legal-for-trade use. Manufactured, calibrated and adjusted in Italy by Dini Argeo, using certified sample weights.
TRADE APPROVED MODELS OF THIS PALLET TRUCK SCALE ARE AVAILABLE HERE
- Maximum lifting capacity: 2,000 kg.
- Resolution:
> internal use: 0,2 kg
> approved: 0,5 / 1 kg - Accuracy (weighing of goods on Europallet with distributed load):
> internal use: +/- 0,5 kg
> approved: according to CE certification (Directive 2014/31/EU) - Calibration and Set-Up parameters configurable from keyboard.
- Forks with low profile, only 85 mm.
- Forks dimensions 1150 x 550 x 85 mm.
- Lifting height: 200 mm.
- Weight approx. 125 kg.
- Bearing structure in extra-thick steel, oven-fire painted.

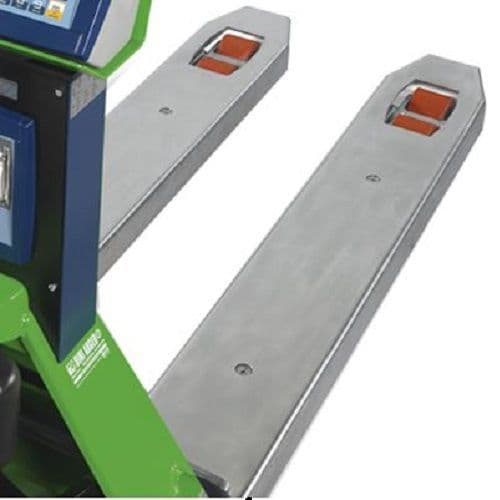

- Optional stainless steel forks.
- Standard swivelling head +/-160°.

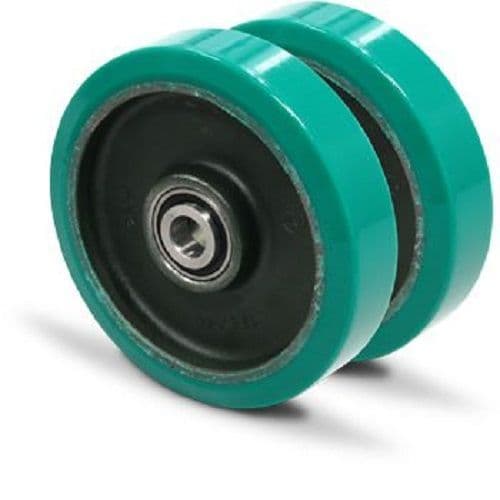

- Steering wheels and double loading wheels with polyurethane coating.
- Membrane waterproof keyboard, with 17 numeric/functional keys.
- Dini Argeo electronics, ATEX certified, intrinsically safe.
- 230Vac 50Hz battery charger with EU, US and UK plugs as standard (charging time 8 hours) for charging in a safe area. Optional AU plug.
- Temperature range: -10° / +40° C
Functions
- Zeroing, Tare
- High Resolution Weighing x 10
- Net/Gross or lb/kg conversion
- Weighs accumulation
- Formulation
Discover the other functions, download the manual.
Delivery on these trucks is usually 2-3 weeks from receipt of order.
Specifications
CAPACITIES:
2000kg - 2500kg
RESOLUTION:
0.2kg/2kg
Price:
£2831 - £2886
Datasheet:
Manual:
Brand:
Dini Argeo
Product Code:
TPWX2GD20-2
Weight:
125kg
Frequently Asked Questions
Do I need Trade Approved Scales?
If a financial transaction is taking place based on the weight on the scale, then yes, you will need Trade Approved scales.
