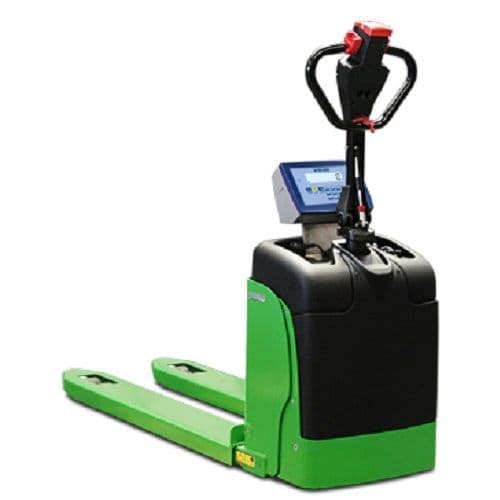

Dini Argeo ELWL Logistic Trade Approved Electric Pallet Truck Scale

Please call Oneweigh on 0800 030 6654 to confirm final price and delivery lead time.

Electric pallet truck scale, with built-in electronic weighing. Easy to use, reliable, suitable for harsh work conditions. It is indispensable when one needs to weigh accurately and save time. Manufactured, calibrated and adjusted in Italy by Dini Argeo, using certified sample masses. Available also CE-M approved.

MAIN FEATURES (weighing)

• Maximum lifting capacity: 1200 kg.
• 4 shear-beam IP67 load cells and connections.
• Weight indicator with a 17-key, waterproof, numerical-functional keyboard; backlit 25mm LCD display with 6 high-contrast digits and with icons for showing the active functions.
• Easy to clean waterproof ABS IP65 case resistant to harsh and corrosive environments.
• Digital calibration and set-up configurable from keypad.
• Power supply through built-in rechargeable battery. Battery level indication.
• Programmable energy saving functions.
• Configurable RS232 / C bidirectional port for connection to the printer.
• Configurable RS232 / C bidirectional port for PC, modem radio or portable terminal.

ELECTRICAL AND MECHANICAL FEATURES

• Thick steel and oven-fire painted structure.
• Wheels with polyurethane coating.
• Distance from the centre of gravity: 600 mm.
• Fork height: 85 mm to max. 200 mm.
• Adjustable lowering speed.
• Maximum horizontal inclination: 10% at full load, 25% without load.
• Electromagnetic and parking brakes.
• Electric pallet truck supplied directly by rechargeable battery incorporated into the structure.
• 24 VDC 55 Ah battery and charger.
• Operating life of 40 work cycles, at full load, with movements of about 30 m.
• Electric power supply 0.3 kw traction and in lifting 0,4 Kw.

Options (only available at time of order)

• Thermal printer option box
• Radio modem option box
• WI-FI interface
• Alibi memory with time-date
• Date / Time

Delivery on these trucks is usually 2/3 weeks from receipt of order.
