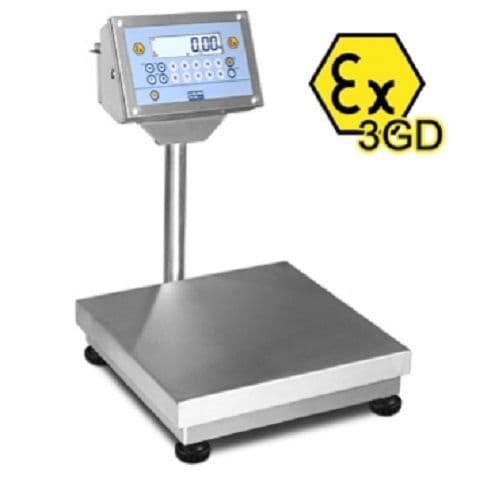

Dini Argeo Easy Pesa 3GD Trade Approved Bench & Floor Scales

Fully stainless steel bench scales, for specific use in ATEX hazardous areas. Powered by a long lasting rechargeable battery which allows an easier installation directly where it's needed. These scales don't need a power supply socket in dangerous zone nor ATEX proof power supply cables. Provided with ATEX declaration of conformity. Ex II 3G IIC T6 Gc X and Ex II 3D IIIC T115°C Dc X.

PLATFORM FEATURES

• Approved single point STAINLESS STEEL load cell according to OIML R60 standards with protection against dust and water splashes according to IP67 standards.
• ATEX approved load cell with ATEX protection: ATEX II 1G Ex ia IIC T6 (Ta -20÷+40°C) TX (Ta -20÷+65°C) Ga. ATEX II 1D Ex ta IIIC TX°C (Ta -20÷+40°C) TX°C (Ta -20÷+65°C) Da IP65
• Structure, enclosure and loading plate made in AISI304 satin finish stainless steel.
• Adjustable levelling feet with plastic over shoe.
• Supplied with support column, height: - 500 mm in the "Q" models; - 700 mm in the "X" models.

WEIGHT INDICATOR FEATURES

• IP68 Weight indicator for ATEX areas with protection methods according to: ATEX II 3G Ex nR IIC T6 Gc X for gases. ATEX II 3D Ex tc IIIC T130°C Dc IP68 X for dust.
• EC-Type-Examination certificate according to Annex III (ATEX directive). CE-M approvable (OIML R-76 / EN 45501).
• Waterproof 17-key numerical and functional keyboard.
• Backlight LCD display with 6 25-mm high contrast digits, clearly visible even in poor lighting conditions and with low temperatures.
• Up to 10.000e or multirange 3 x 3000e @ 0,3 µV/d in CE-M approved version for legal for trade use.
• Up to 1.000.000 displayable divisions with internal resolution up to 3.000.000 points.
• A/D 24-bit sigma-delta conversion, up to 200 conv./sec. autoselect.
• Power supply through external battery pack with 100h operating time. It's possible to buy another battery pack for continuous use (24/7).
• Charger included in the supply.

SELECTABLE FUNCTIONING MODE

• High Resolution Weighing x 10
• Net/Gross or lb/kg conversion
• Weight totalization
• Formula weighing
• +/- Checkweighing
• Counting (Max. resolution of 1.500.000 divisions)

Delivery on these scales is usually 1-2 weeks from receipt of order.
