Description

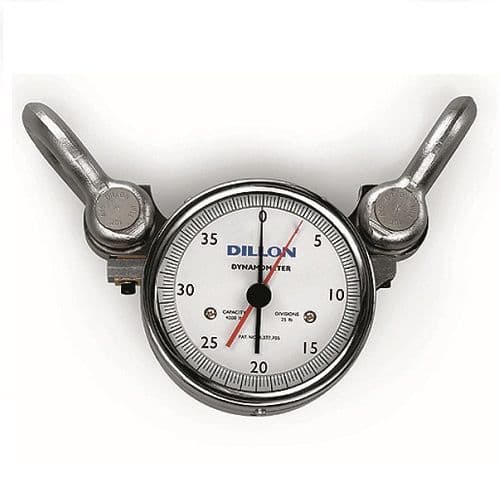

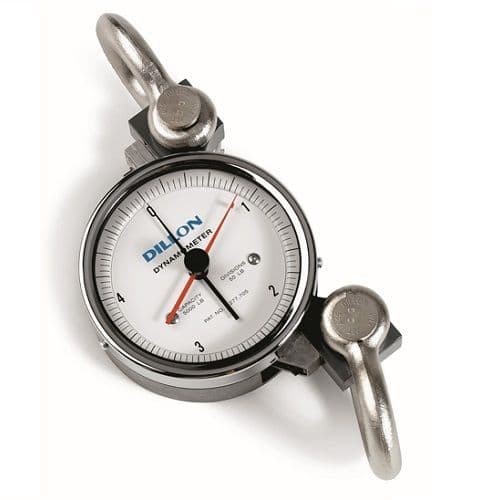

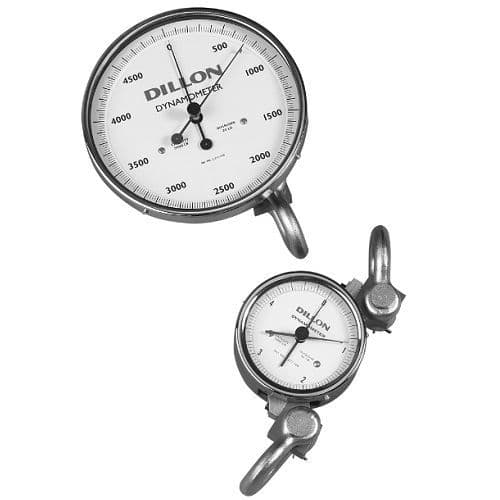

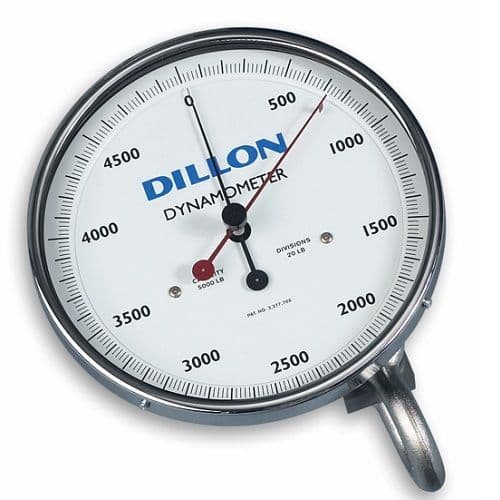

Originally designed to measure the tension on telephone wires, the Dynamometer has limitless versatility as a tension and weight measuring instrument. It is used for diverse jobs, such as suspended weighing; mounting cables for bridges; adjusting tension on guy wires; field testing chain, rope, wire, or anything requiring precision force or tension measurement.
- Capacities: 500kg to 20,000kg
- Accuracy: + 0.5% of capacity
- Temperature Range: -50° to 140° F (-45° to 60° C)
- Construction: Pressure bar - High-grade E4340 alloy steel or 7075-T651, Aluminium Shackles - A4140 forged steel (machined from E4340 steel), Shackle pins - Machined from E4340 steel
- Corrosion Protection: Pressure bar protected with durable powder coat paint. Shackles and pins are electroless nickel plated. All integral machining and fasteners are produced from noncorrosive materials or have suitable plating
- Documentation: Includes users guide and calibration certificate.
- 125mm diameter models include ABS plastic carry case
- Models with 15,000kg and above capacity are supplied in a heavy duty reinforced plywood crate.

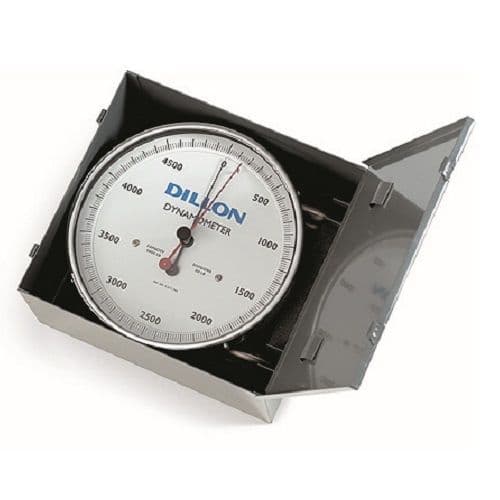

- An optional steel carry case is available for 250mm diameter up to 10,000kg
Specifications
CAPACITIES:
500kg - 20000kg
RESOLUTION:
5kg - 100kg
Datasheet:
Brand:
Dillon
Product Code:
30006-0134
Frequently Asked Questions
Do I need Trade Approved Scales?
If a financial transaction is taking place based on the weight on the scale, then yes, you will need Trade Approved scales.
