Description

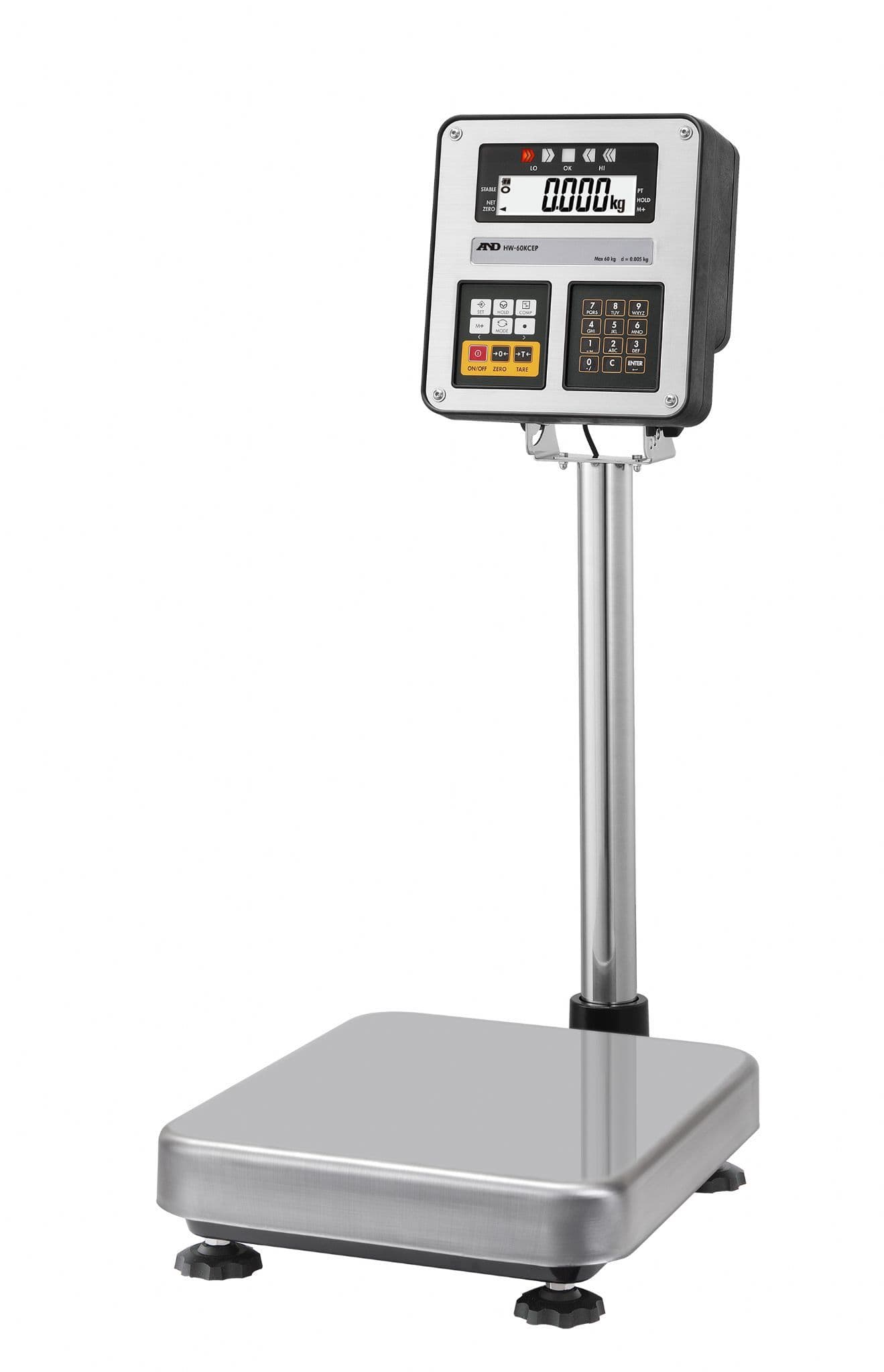

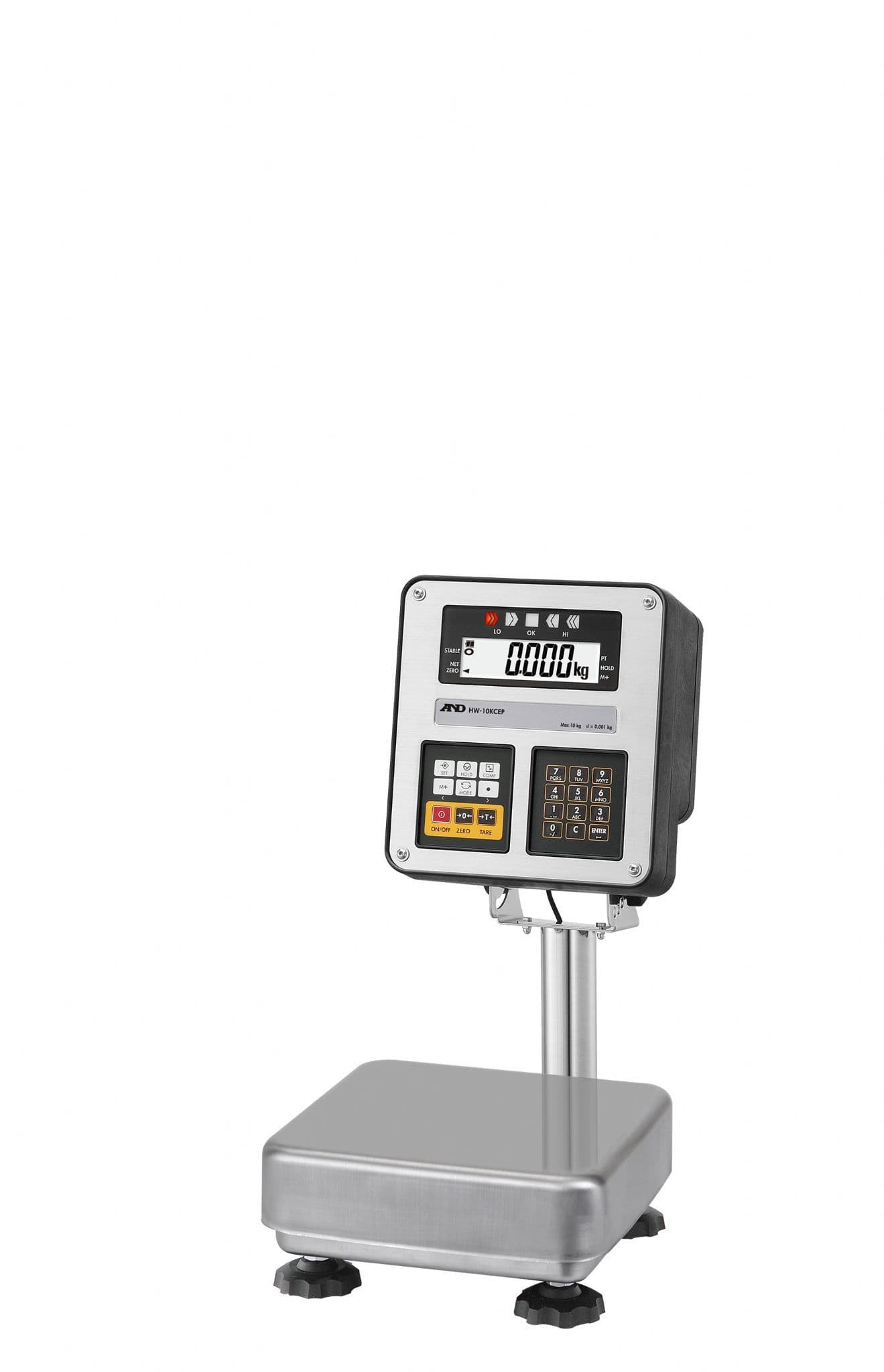

The HV / HW-CEP series allows safe operation in potentially explosive environments. Available energy is limited to a level insufficient to cause sparks or heat that could ignite flammable gases or vapours (i.e. intrinsically safe). Especially suitable for environments where flammable chemicals are processed e.g. petrochemical manufacturers, oil platforms/refineries, petroleum pipelines, pharmaceutical companies, paint manufacturers etc.- Suitable for hazardous areas
- Affordable selection of capacities and resolutions for excellent explosion protection
- High-speed measurementresponse within 1 second * (for the HV-CEP series)
- Multi-coloured 5-step LED comparator lights
- Auto-tare and negative comparison functions realizing take-away check weighing
- Highly-visible, LCD display (25 mm character height) with white backlight
- Quick and easy settings using the alphanumeric keypad
- Key lock function to prevent operators from making changes to the scale settings
- Adjustable response characteristics depending on the degree of drafts and vibrations at the location
- IP65 dust & waterproof base unit with a stainless steel (SUS430) pan
- Display hold function
- Counting mode function
- Accumulation (M+) function
- Operation with four D batteries** making it unnesseccary to secure power from a safe area via a safety barrier
- Display angle adjustable to five levels
* Time required for the last digit to settle (the stabilization mark will be lit one second after), which is subject to the weighing environment, response characteristic setting and how the target object is placed.
** The battery life is approx. 1500 hours, with LED backlight OFF (or approx. 1000 hours with LED and backlight ON).
The batteries to be used are specified: DURACELL MN1300, ENERGIZER E95, or Panasonic LR20 (XJ). Batteries are not included.
Specifications
CAPACITIES:
3kg - 220kg
RESOLUTION:
1g - 100g
Price:
£1269 - £1575
Datasheet:
Manual:
Brand:
A&D Weighing
Product Code:
HW-10KCEP
Weight:
Frequently Asked Questions
Do I need Trade Approved Scales?
If a financial transaction is taking place based on the weight on the scale, then yes, you will need Trade Approved scales.
